Sink data from RisingWave to PostgreSQL

This guide will show you how to sink data from RisingWave to PostgreSQL using either the JDBC connector or the native PostgreSQL connector. The sink parameters are similar to those for other JDBC-available databases, such as MySQL. However, we will cover the configurations specific to PostgreSQL and how to verify that data is successfully sunk.

PostgreSQL Sink Options

RisingWave provides two ways to sink data to PostgreSQL:

JDBC Connector (connector = 'jdbc') - Uses JDBC for database connectivity
Native PostgreSQL Connector (connector = 'postgres') - Uses native PostgreSQL protocol

Both approaches support the same data types and provide similar functionality, but the native connector may offer better performance for PostgreSQL-specific features.

Prerequisites

You can test out this process on your own device by using the postgres-sink demo in the integration_test directory of the RisingWave repository.

Set up a PostgreSQL database

AWS RDS
Self-hosted

Set up a PostgreSQL RDS instance on AWS

Here we will use a standard class instance without Multi-AZ deployment as an example.

Log in to the AWS console. Search “RDS” in services and select the RDS panel.
Create a database with PostgreSQL as the Engine type. We recommend setting up a username and password or using other security options.
When the new instance becomes available, click on its panel.

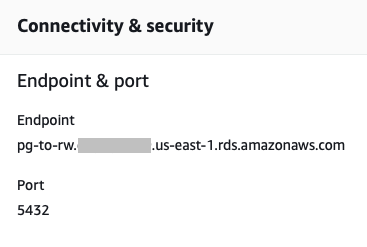

From the Connectivity panel, we can find the endpoint and connection port information.

Connect to the RDS instance from Postgres

Now we can connect to the RDS instance. Make sure you have installed psql on your local machine, and start a psql prompt. Fill in the endpoint, the port, and login credentials in the connection parameters.

psql --host = pg-to-rw.xxxxxx.us-east-1.rds.amazonaws.com --port=5432 --username=awsuser --password

For more login options, refer to the RDS connection guide.

Create a table in PostgreSQL

Use the following query to set up a table in PostgreSQL. We will sink to this table from RisingWave.

CREATE TABLE target_count (
  target_id VARCHAR(128) PRIMARY KEY,
  target_count BIGINT
);

Set up RisingWave

Install and launch RisingWave

To install and start RisingWave locally, see the Get started guide. We recommend running RisingWave locally for testing purposes.

Notes about running RisingWave from binaries

If you are running RisingWave locally from binaries and intend to use the native CDC source connectors or the JDBC sink connector, make sure you have JDK 11 or later versions installed in your environment.

Create a sink

Syntax

CREATE SINK [ IF NOT EXISTS ] sink_name
[FROM sink_from | AS select_query]
WITH (
   connector = 'jdbc' | 'postgres',
   field_name = 'field', ...
);

Parameters (JDBC)

Parameter or clause	Description
sink_name	Name of the sink to be created.
sink_from	A clause that specifies the direct source from which data will be output. `sink_from` can be a materialized view or a table. Either this clause or a SELECT query must be specified.
AS select_query	A SELECT query that specifies the data to be output to the sink. Either this query or a FROM clause must be specified. See SELECT for the syntax and examples of the SELECT command.
connector	Sink connector should be `jdbc`. To switch from `jdbc` to `postgres`, set `stream_switch_jdbc_pg_to_native = true` under `[streaming.developer]`.
jdbc.url	Required. The JDBC URL of the destination database necessary for the driver to recognize and connect to the database.
user	The user name for the database connection.
password	The password for the database connection.
jdbc.query.timeout	Specifies the timeout for the operations to downstream. If not set, the default is 60s.
jdbc.auto.commit	Controls whether to automatically commit transactions for JDBC sink. If not set, the default is false.
table.name	Required. The table in the destination database you want to sink to.
schema.name	The schema in the destination database you want to sink to. The default value is public.
type	Sink data type. Supported types: `append-only`: Sink data as INSERT operations. `upsert`: Sink data as UPDATE, INSERT and DELETE operations.
primary_key	Required if type is upsert. The primary key of the sink, which should match the primary key of the downstream table.

Parameters (Postgres Native)

RisingWave introduced the native Postgres sink connector in version 2.2, and the JDBC sink connector for Postgres will be deprecated in a future release. You can try it in-place for your JDBC sinks by setting stream_switch_jdbc_pg_to_native = true under [streaming.developer].

Parameter or clause	Description
sink_name	Name of the sink to be created.
sink_from	A clause that specifies the direct source from which data will be output. `sink_from` can be a materialized view or a table. Either this clause or a SELECT query must be specified.
AS select_query	A SELECT query that specifies the data to be output to the sink. Either this query or a FROM clause must be specified. See SELECT for the syntax and examples of the SELECT command.
connector	Sink connector must be `postgres`.
user	The user name for the database connection.
password	The password for the database connection.
database	Required. The database in the destination database you want to sink to.
table	Required. The table in the destination database you want to sink to.
schema	The schema in the destination database you want to sink to. The default value is public.
type	Sink data type. Supported types: `append-only`: Sink data as INSERT operations. `upsert`: Sink data as UPDATE, INSERT and DELETE operations.
primary_key	Required if type is upsert. The primary key of the sink, which should match the primary key of the downstream table.
ssl_mode	The `ssl.mode` parameter determines the level of SSL/TLS encryption for secure communication with Postgres. Accepted values are `disabled`, `preferred`, `required`, `verify-ca`, and `verify-full`. The default value is `disabled`. When set to `required`, it enforces TLS for establishing a connection; When set to `verify-ca`, it verifies that the server is trustworthy by checking the certificate chain up to the root certificate stored on the client; When set to `verify-full`, it verifies the certificate and also ensures the server hostname matches the name in the certificate.
ssl_root_cert	Specify the root certificate secret. You must create secret first and then use it here.

Sink data from RisingWave to PostgreSQL

Create source and materialized view

You can sink data from a table or a materialized view in RisingWave to PostgreSQL. For demonstration purposes, we’ll create a source and a materialized view, and then sink data from the materialized view. If you already have a table or materialized view to sink data from, you don’t need to perform this step. Run the following query to create a source to read data from a Kafka broker.

CREATE SOURCE user_behaviors (
    user_id VARCHAR,
    target_id VARCHAR,
    target_type VARCHAR,
    event_timestamp TIMESTAMPTZ,
    behavior_type VARCHAR,
    parent_target_type VARCHAR,
    parent_target_id VARCHAR
) WITH (
    connector = 'kafka',
    topic = 'user_behaviors',
    properties.bootstrap.server = 'message_queue:29092',
    scan.startup.mode = 'earliest'
) FORMAT PLAIN ENCODE JSON;

Next, we will create a materialized view that queries the number of targets for each target_id. Note that the materialized view and the target table share the same schema.

CREATE MATERIALIZED VIEW target_count AS
SELECT
    target_id,
    COUNT(*) AS target_count
FROM
    user_behaviors
GROUP BY
    target_id;

Sink from RisingWave

You can use either the JDBC connector or the native PostgreSQL connector to sink data to PostgreSQL.

Option 1: Native PostgreSQL Connector (Recommended for PostgreSQL-specific features)

Use the native PostgreSQL connector for better performance and PostgreSQL-specific features:

CREATE SINK target_count_postgres_sink FROM target_count WITH (
    connector = 'postgres',
    host = 'postgres',
    port = '5432',
    user = 'myuser',
    password = '123456',
    database = 'mydb',
    table = 'target_count',
    type = 'upsert'
);

Option 2: JDBC Connector (Recommended for compatibility)

Use the JDBC connector for broader compatibility with PostgreSQL deployments: Use the following query to sink data from the materialized view to the target table in PostgreSQL. Ensure that the jdbc_url is accurate and reflects the PostgreSQL database that you are connecting to. See CREATE SINK for more details.

CREATE SINK target_count_postgres_sink FROM target_count WITH (
    connector = 'jdbc',
    jdbc.url = 'jdbc:postgresql://postgres:5432/mydb',
    user = 'myuser',
    password = '123456',
    table.name = 'target_count',
    type = 'upsert',
    primary_key = 'target_id'
);

Verify update

To ensure that the target table has been updated, query from target_count in PostgreSQL.

SELECT * FROM target_count
LIMIT 10;

Advanced configurations

Native PostgreSQL Connector Parameters

Parameter	Description	Required	Default
host	PostgreSQL server hostname	Yes
port	PostgreSQL port number	No	5432
user	PostgreSQL username	Yes
password	PostgreSQL password	Yes
database	Target database name	Yes
table	Target table name	Yes
schema	Target schema name	No	public
type	Sink type: append-only or upsert	Yes
ssl_mode	SSL mode: disable, require, prefer	No	prefer
ssl.root.cert	SSL root certificate path	No
max_batch_rows	Maximum rows per batch	No	1024

JDBC Connector Parameters

Parameter	Description	Required
jdbc.url	JDBC connection URL	Yes
user	Database username	Yes
password	Database password	Yes
table.name	Target table name	Yes
type	Sink type: append-only or upsert	Yes
primary_key	Primary key columns	No

Configuration examples

Native PostgreSQL with SSL

CREATE SINK postgres_native_ssl_sink
FROM secure_data_mv
WITH (
    connector = 'postgres',
    host = 'secure-postgres.example.com',
    port = '5432',
    user = 'risingwave_user',
    password = 'secure_password',
    database = 'secure_db',
    table = 'secure_metrics',
    type = 'upsert',
    ssl_mode = 'require',
    ssl.root.cert = '/path/to/ca-cert.pem'
);

JDBC with connection pooling

CREATE SINK postgres_jdbc_pooled_sink
FROM high_volume_mv
WITH (
    connector = 'jdbc',
    jdbc.url = 'jdbc:postgresql://postgres-cluster:5432/analytics_db?sslmode=require&ApplicationName=RisingWave',
    user = 'analytics_user',
    password = 'password',
    table.name = 'high_volume_metrics',
    type = 'upsert',
    primary_key = 'metric_id,timestamp'
);

Batch optimized configuration

CREATE SINK postgres_batch_optimized_sink
FROM performance_metrics_mv
WITH (
    connector = 'postgres',
    host = 'postgres-performance.example.com',
    port = '5432',
    user = 'performance_user',
    password = 'password',
    database = 'performance_db',
    table = 'metrics_table',
    type = 'append-only',
    max_batch_rows = '2048'
);

Cross-schema sink

CREATE SINK postgres_cross_schema_sink
FROM analytics_data_mv
WITH (
    connector = 'postgres',
    host = 'analytics-postgres.example.com',
    port = '5432',
    user = 'analytics_user',
    password = 'password',
    database = 'analytics_db',
    schema = 'analytics',
    table = 'daily_metrics',
    type = 'upsert'
);

Common issues and solutions

Connection timeouts: Increase timeout values or check network connectivity
Authentication failures: Verify credentials and pg_hba.conf settings
Table lock conflicts: Monitor for long-running transactions
Disk space issues: Monitor PostgreSQL data directory space
Memory issues: Check shared_buffers and work_mem settings
SSL certificate errors: Verify certificate configuration for secure connections

Performance optimization

Batch size: Use optimal batch size (100-1000 recommended)
Indexes: Ensure proper indexes on target tables
Connection pooling: Configure appropriate connection pool settings
VACUUM and ANALYZE: Regular maintenance for optimal performance
WAL configuration: Optimize write-ahead logging for write-heavy workloads

Security best practices

Authentication and authorization

CREATE SINK postgres_secure_sink
FROM secure_data_mv
WITH (
    connector = 'postgres',
    host = 'secure-postgres.example.com',
    port = '5432',
    user = 'secure_user',
    password = 'strong_password',
    database = 'secure_db',
    table = 'secure_table',
    ssl_mode = 'require'
);

SSL/TLS encryption

CREATE SINK postgres_ssl_sink
FROM sensitive_data_mv
WITH (
    connector = 'postgres',
    host = 'ssl-postgres.example.com',
    port = '5432',
    user = 'ssl_user',
    password = 'ssl_password',
    database = 'ssl_db',
    table = 'ssl_table',
    ssl_mode = 'require',
    ssl.root.cert = '/path/to/ca-cert.pem'
);

Limitations

Transaction size: Large transactions may impact performance
Connection limits: Subject to PostgreSQL max_connections limit
Lock contention: Concurrent writes may cause lock conflicts
Data type constraints: Some RisingWave types may require conversion
Network latency: Performance depends on network connectivity
Schema changes: Limited support for automatic schema migration

PostgreSQL has specific limits and performance characteristics. Monitor your database performance and configure appropriate resources for your workload.

Use appropriate indexes, batch sizes, and connection pooling for optimal performance. Regular maintenance (VACUUM, ANALYZE) is important for long-running systems.

Ensure proper authentication and network security. Use SSL/TLS for production deployments and implement proper access controls and monitoring.

For the PostgreSQL data type mapping table, see the Data type mapping table under the Ingest data from PostgreSQL CDC topic. Additional notes regarding sinking data to PostgreSQL:

A varchar column in RisingWave can be sinked to a uuid column in Postgres.
Only one-dimensional arrays in RisingWave can be sinked to PostgreSQL.
For array type, we only support smallint, integer, bigint, real, double precision, and varchar type now.

Get started

Work with data

Deploy & operate

Performance

Troubleshooting

Reference

Cloud

​PostgreSQL Sink Options

​Prerequisites

​Set up a PostgreSQL database

​Set up a PostgreSQL RDS instance on AWS

​Connect to the RDS instance from Postgres

​Create a table in PostgreSQL

​Set up RisingWave

​Install and launch RisingWave

​Notes about running RisingWave from binaries

​Create a sink

​Syntax

​Parameters (JDBC)

​Parameters (Postgres Native)

​Sink data from RisingWave to PostgreSQL

​Create source and materialized view

​Sink from RisingWave

​Option 1: Native PostgreSQL Connector (Recommended for PostgreSQL-specific features)

​Option 2: JDBC Connector (Recommended for compatibility)

​Verify update

​Advanced configurations

​Native PostgreSQL Connector Parameters

​JDBC Connector Parameters

​Configuration examples

​Native PostgreSQL with SSL

​JDBC with connection pooling

​Batch optimized configuration

​Cross-schema sink

​Common issues and solutions

​Performance optimization

​Security best practices

​Authentication and authorization

​SSL/TLS encryption

​Limitations

PostgreSQL Sink Options

Prerequisites

Set up a PostgreSQL database

Set up a PostgreSQL RDS instance on AWS

Connect to the RDS instance from Postgres

Create a table in PostgreSQL

Set up RisingWave

Install and launch RisingWave

Notes about running RisingWave from binaries

Create a sink

Syntax

Parameters (JDBC)

Parameters (Postgres Native)

Sink data from RisingWave to PostgreSQL

Create source and materialized view

Sink from RisingWave

Option 1: Native PostgreSQL Connector (Recommended for PostgreSQL-specific features)

Option 2: JDBC Connector (Recommended for compatibility)

Verify update

Advanced configurations

Native PostgreSQL Connector Parameters

JDBC Connector Parameters

Configuration examples

Native PostgreSQL with SSL

JDBC with connection pooling

Batch optimized configuration

Cross-schema sink

Common issues and solutions

Performance optimization

Security best practices

Authentication and authorization

SSL/TLS encryption

Limitations
